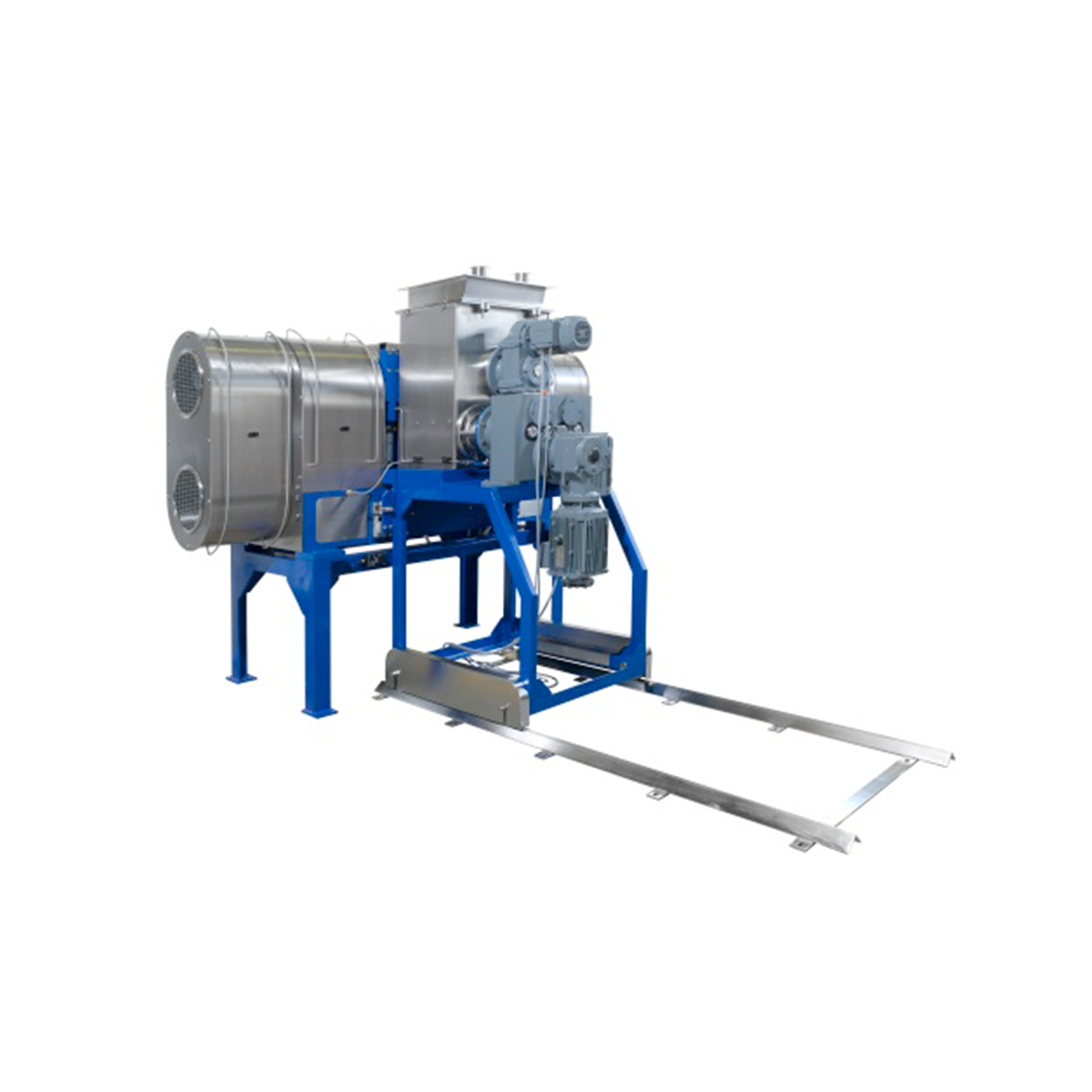

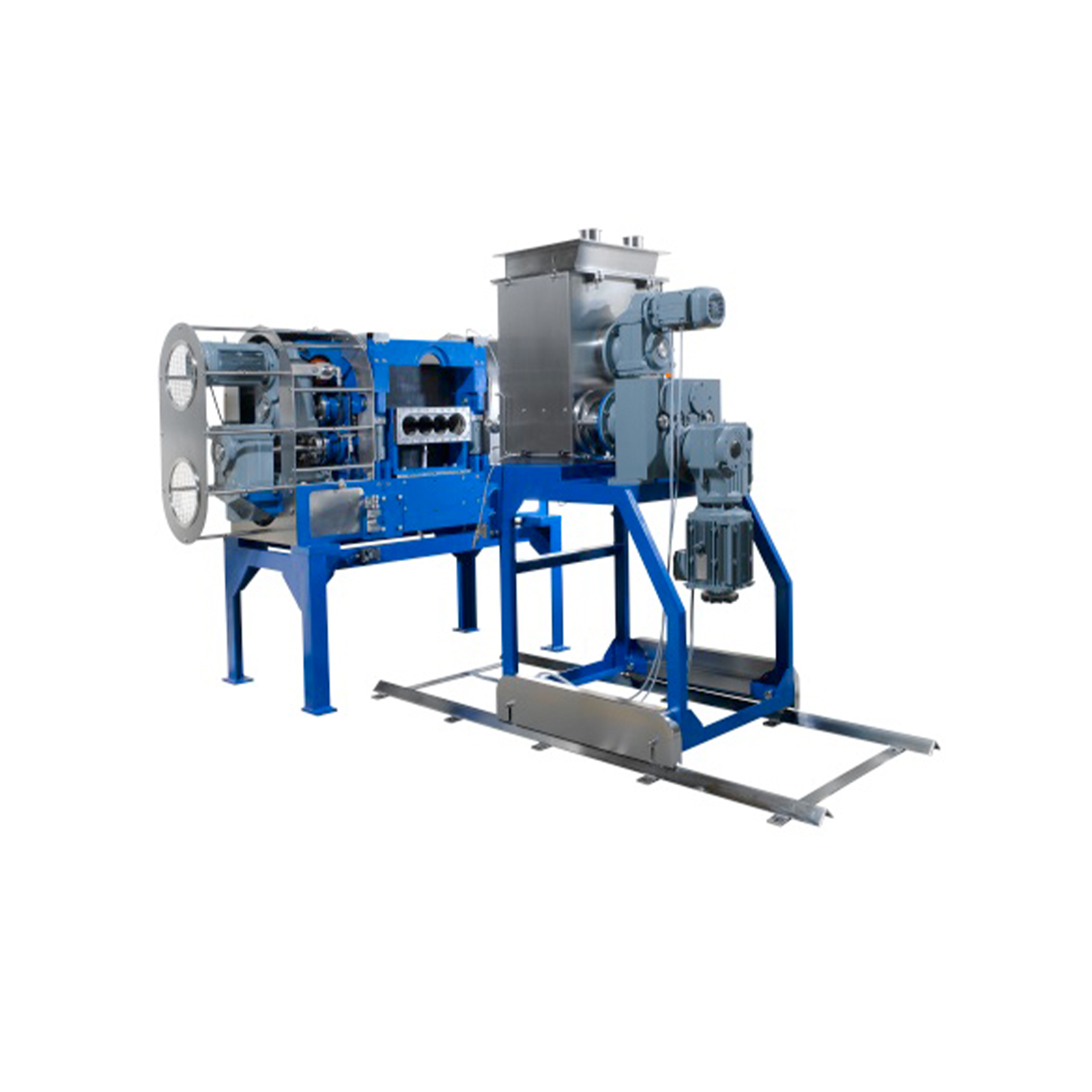

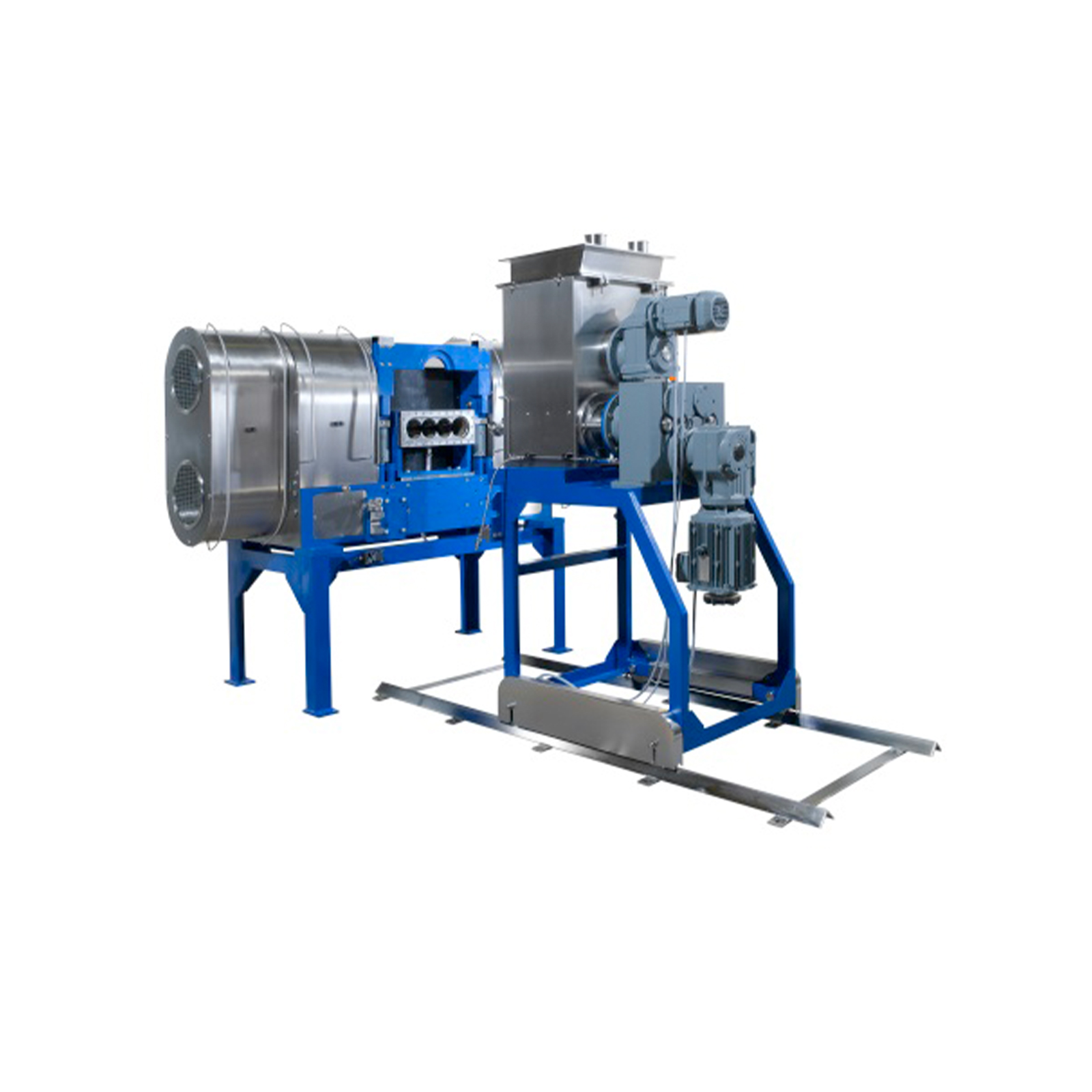

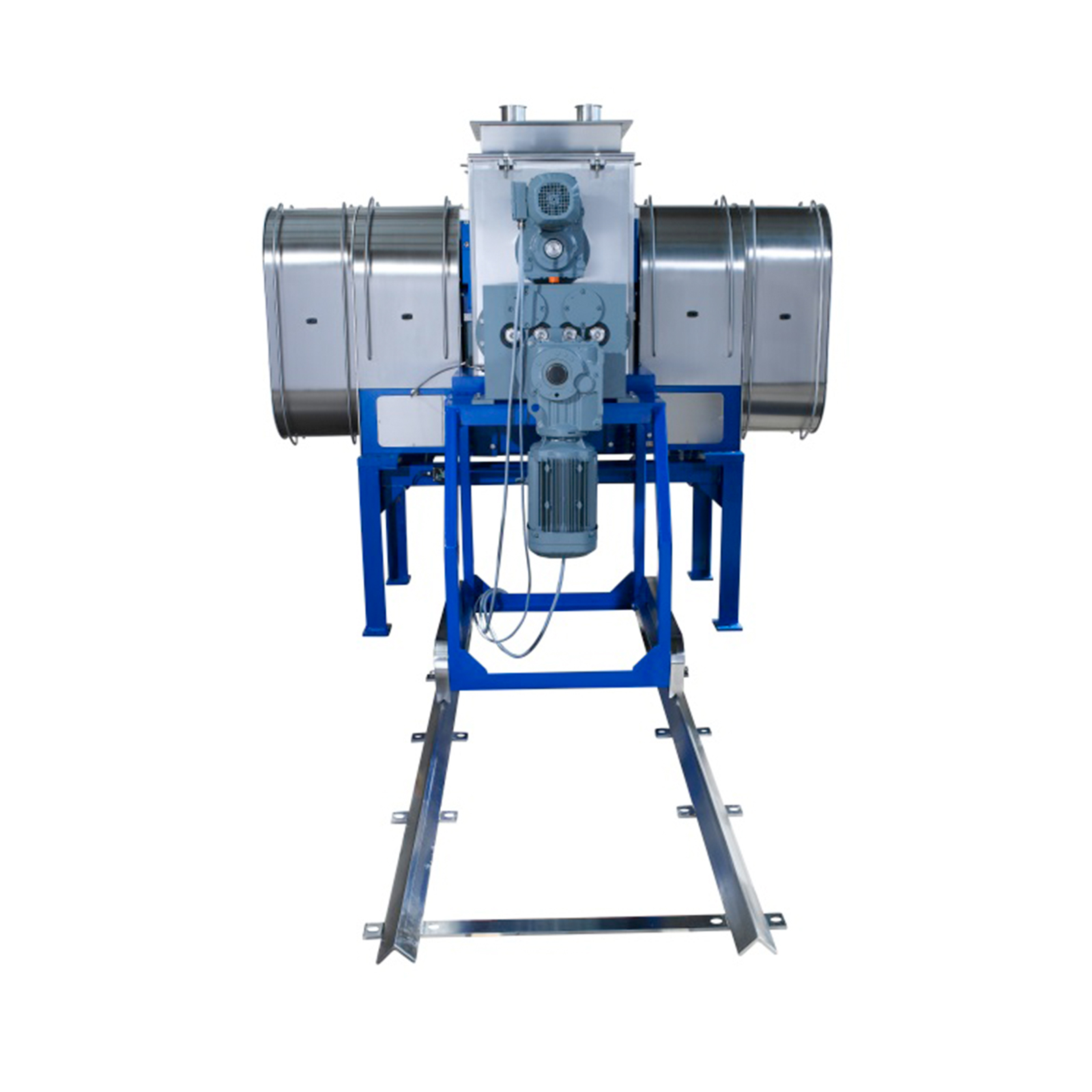

Roller press PP 175

The PP 175 roller press from Alexanderwerk is the ideal roller press for economical compaction and meets all requirements and standards in this field. The PP 175 complements the PP series of machines below the PP 250 and, with a roller diameter of 175 mm, achieves a throughput of up to 2,400 kg/h. The PP 175 comes standard with the Alexanderwerk patented Combi-Vent-Feeder®. This special design of the feed system ensures particularly economical operation of the plant, as the improved venting allows larger quantities of product to be fed into the roller gap. Due to the modular design and the double-sided bearing of the rollers, an extremely robust construction is guaranteed. This allows a maximum linear pressing force of 243 kN/cm to be achieved. Process parameters determined in the trial can be easily scaled up for production on the PP 175 roller press. The PP 175 allows for great flexibility and adaptation to a wide variety of granule sizes. Numerous special versions or customer-specific adaptations are available upon request. Due to technical changes and further developments, the machines may differ in detail from the versions shown.
